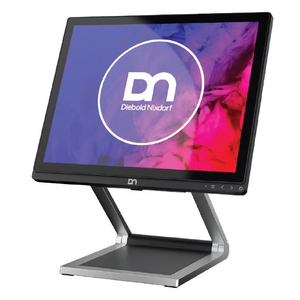

The Beetle A1050 is an “All-in-one” POS and kiosk system with a 15″ touch screen in a sealed design and fanless that sets new standards in the industry.
The modular and scalable design simplifies maintenance, offers upgrade options, protects investments and makes the system a suitable solution for use in trade and catering.
The Beetle A1050 is an “All-in-one” POS and kiosk system with a 15″ touch screen in a sealed design and fanless that sets new standards in the industry.
The modular and scalable design simplifies maintenance, offers upgrade options, protects investments and makes the system a suitable solution for use in trade and catering.
- Application as POS system, kiosk system, information/service terminal
- Ergonomic design and easy handling
- Economical Intel Mobile Core processor technology
- 15″ bezel-free touch screen
- IP54 protection
- VESA compatibility
Screen: 15″ LED-backlit LCD, 4:3, resolution 1024 x 768, Projected capacitive multi-touch
Processors: Intel Celeron 4305UE /2x 2.0 GHz, Intel Core i3-8145UE /2x 2.2-3.9 GHz, Intel Core i5-8365UE /4x 1.6-4.1 GHz
Memory: 4 GB – 16 GB DDR4 RAM
Interfaces: 2x RS232 (switchable 0/5/12V), 2x USB 2.0, 2x USB 3.0, 1x USB-C (PD 5V/12V + DisplayPort), 1x USB-C (PD 5V/24V for printer), 1x Ethernet LAN 1Gbit/s, 1x Cash drawer
Interfaces on I/O Hub: 1x USB-C (PD + DisplayPort), 1x USB-C (uplink to system), 1x PoweredUSB 12V, 1x PoweredUSB 24V), 2x USB 3.0, 3x RS232 ( switchable 0/5/12V), 1x Ethernet LAN 10/100/1000 Mbit/s, 1x Cash drawer
Units: max. 2x M.2 SSD
Peripheral devices: MSR, iButton, NFC, customer display (rear)
Integrated features: speakers, Firmware TPM 2.0, NFC reader option, WLAN/Bluetooth option
Colors: black, silver
Management: BEETLEINFO (Management Agent), Desktop Management Interface (DMI), Preboot Execution Environment (PXE), Advanced Configuration and Power, Interface (ACPI), Wake on LAN (WoL), System Management BIOS ( SMBIOS)
Software: Windows 10 IoT Ent. 2019 LTSC, WNLPOS (Linux)
Measurements: (without stand) height 273 mm, width 339 mm, depth 38 mm
Weight: (without stand) approx. 3 kg
Processors: Intel Celeron 4305UE /2x 2.0 GHz, Intel Core i3-8145UE /2x 2.2-3.9 GHz, Intel Core i5-8365UE /4x 1.6-4.1 GHz
Memory: 4 GB – 16 GB DDR4 RAM
Interfaces: 2x RS232 (switchable 0/5/12V), 2x USB 2.0, 2x USB 3.0, 1x USB-C (PD 5V/12V + DisplayPort), 1x USB-C (PD 5V/24V for printer), 1x Ethernet LAN 1Gbit/s, 1x Cash drawer
Interfaces on I/O Hub: 1x USB-C (PD + DisplayPort), 1x USB-C (uplink to system), 1x PoweredUSB 12V, 1x PoweredUSB 24V), 2x USB 3.0, 3x RS232 ( switchable 0/5/12V), 1x Ethernet LAN 10/100/1000 Mbit/s, 1x Cash drawer
Units: max. 2x M.2 SSD
Peripheral devices: MSR, iButton, NFC, customer display (rear)
Integrated features: speakers, Firmware TPM 2.0, NFC reader option, WLAN/Bluetooth option
Colors: black, silver
Management: BEETLEINFO (Management Agent), Desktop Management Interface (DMI), Preboot Execution Environment (PXE), Advanced Configuration and Power, Interface (ACPI), Wake on LAN (WoL), System Management BIOS ( SMBIOS)
Software: Windows 10 IoT Ent. 2019 LTSC, WNLPOS (Linux)
Measurements: (without stand) height 273 mm, width 339 mm, depth 38 mm
Weight: (without stand) approx. 3 kg
