POS systems have to do much more than simply scan items and handle payments. Dynamically growing requirements and consumer expectations mean that they have to cover an even greater range of functionality.

Retailers need a POS system that can operate several applications simultaneously. The BEETLE /M-III, offers excellent scalability and high performance, with the capability to adapt to constantly changing business requirements.

FEATURES

  • Front-end POS system
  • Store back office PC
  • Kiosk solution
  • Information/service terminal
  • The desktop management agent BEETLEINFO supports remote asset management and remote monitoring
  • Intel Active Management Technology (AMT) allows remote management out of band, independent of the state of the operating system
  • Power-saving Intel processors
  • Compliant with the 80PLUS Gold environmental standard

TECHNICAL SPECIFICATION

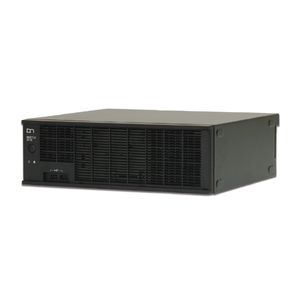

Name/Label BEETLE /M-III
Manufacturer Diebold Nixdorf, USA
Processors Intel Celeron N3160, 4x 1.6-2.24 GHz
Intel Celeron G3900, 2x 2.8GHz
Intel Celeron G4900, 2x 3.2 GHz
Intel Pentium G4400, 2x 3.3 GHz
Intel Pentium G5400, 2x 3.7 GHz
Intel Core i3-6100, 2x 3.7 GHz
Intel Core i3-7101E, 2x 3.9 GHz
Intel Core i3-9100E, 4x 3.1-3.7 GHz
Intel Core i5-6500, 4x 3.2-3.6 GHz
Intel Core i5-7500, 4x 3.4-3.8 GHz
Intel Core i5-9500E, 6x 3.0-4.2 GHz
Main Memory 4 GB – 32 GB DDR4 RAM
Interfaces RS232 (standard/powered): 1-3/3-5
USB (2.0/3.0): 4/2
PoweredUSB (12V/24V) 0-7/1
Keyboard/mouse (PS/2)
Audio
Video: VGA, 2x DVI/PLink 2
Ethernet LAN: 10/100/1000
Cash drawer
Drives Max. 2x SATA HDD/SSD
M.2 SSD (model specific)
Options Onboard RAID
Removable drives
Intel Active Management (AMT)
USB-C Adapter
PCIe USB Speaker Adapter
System Management BEETLEINFO (desktop management agent)
Desktop Management Interface (DMI)
Preboot Execution Environment (PXE)
Advanced Power Management (APM)
Advanced Configuration and Power Interface (ACPI)
Wake on LAN (WoL)
System Management BIOS (SMBIOS
Operating Systems Windows 7 / 10 IoT Enterprise
POSReady7
WNLPOS (Linux)
*Designed for any POS application
Dimensions (WxDxH) 312 x 303 x 103 (w/o cable cover)
