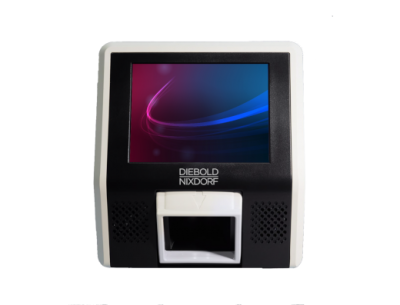

With its wide range of functions, the RP-05 is ideal for use in a variety of scenarios including retail stores, video rental outlets, duty-free shops, libraries and lottery agencies. The RP-05 multifunctional information terminal combines the attributes of a compact kiosk system with those of a classic price checker.

This multifunctional information terminal is simple to use, keeping customers more satisfied as they can look up item prices and other information whenever they want to.


Multimedia Functionality

  • Touchscreen display
  • Two integrated high-grade speakers
  • Audio-visual output with video playback

Flexible System Integration

  • Linux operating system
  • Integration into an existing network environment
  • PoE or AC Dual Band WiFi
  • SG20 Discovery Emulation Mode

Cutting-Edge Scanning Technolog

  • 1D and 2D bar code scanning
  • VESA compatible
  • Multitude of interfaces (USB, RS-232, SD card)
  • Optional usage for entry/exit gate control


Name/Label RP-05
Manufacturer Diebold Nixdorf, USA
System Processor: RISC 400 MHz, RAM 128 MB
Operating system: Linux 2.6 kernel
Storage: 256 MB, expandable (USB stick/ SD card)
Interfaces 1 x SD card slot, SD socket
2 x USB 2.0, host USB A
1 x LAN 10/100 MB RJ-45 network
1 x RS232 (+5V power)
Display Size: 5.7, diagonal
Resolution: 640 x 480 px, 65,535 colors
Brightness: 400 cd/m˝, readable in sunlight
Touch technology: resistive
Graphics support: png, jpeg, gif, bm
Audio Audio ports: high-definition stereo
Audio formats: wav, wma, mp3
3.5 mm (0.14 inches) headphone jack
Bar Code Types Linear 1D bar codes (UPC A/UPC E, EAN-8/EAN-13, GS1 DataBarTM codes, Interleaved 2 of 5, Standard 2 of 5, Code 128/EAN 128, Code 39, Code 93)
2D bar codes (PDF417, MicroPDF417, Datamatrix, MaxiCode, QR Code, MicroQR)
Network Interfaces Ethernet 10/100 MB, standard on board
Power over Ethernet (model-dependent)
Wireless LAN (model-dependent) – AC Dual Band WiFi via USB stick (2.4 and 5GHz)
Options VESA 75 wall mount
Power Supply +12 VDC/1.5A 1,500 mA
Environmental Conditions Operating temperature: – 0 to +40 C (32 to 104 F)
Storage temperature: – 20 to +60 C (-4 to 140 F)
Relative humidity: – up to 95 % (without condensation
Mounting With two screws or VESA 75 mount
Approvals CE
Dimensions (WxDxH) 176 x 85 x 193 mm
