The LS2208 is easy to deploy and use, thanks to its plug-and-play installation and intuitive, user-friendly design, which requires little or no training.

The LS2208 is engineered for continuous, heavy usage all day, every day and has been tested to withstand multiple 5 ft./1.5m drops to concrete.

Integrated multiple interfaces, universal cable compatibility and support for emerging symbologies provide the investment protection you need to help ensure that the scanner you buy today will work with the system you use tomorrow.


  • Durable construction
  • High performance 1-D laser scanner
  • Multiple interfaces available
  • Plug-and-play; universal cable; intuitive scanning
  • Ergonomic and lightweight design
  • Hands-free Intellistand
  • Advanced Data Formatting (ADF)

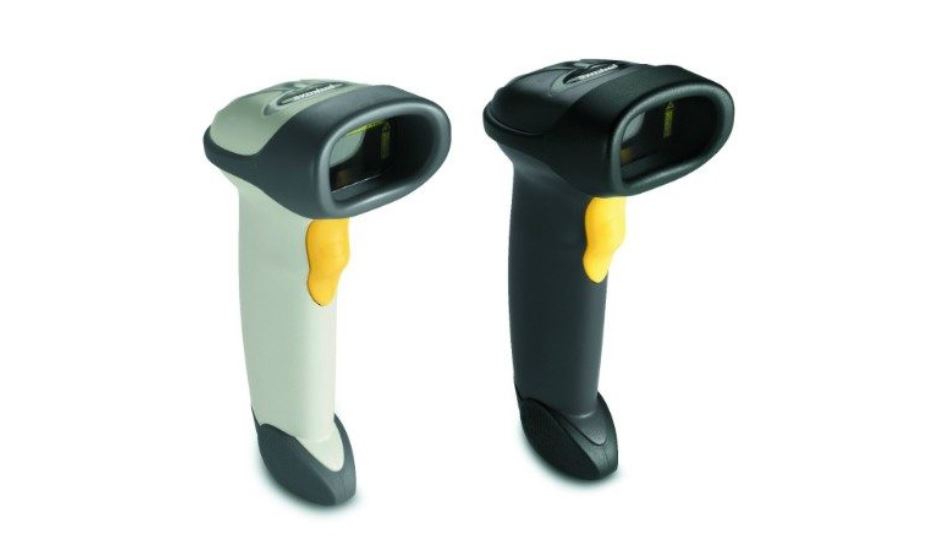

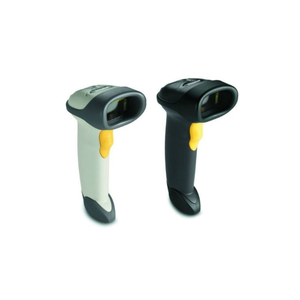

Name/Label LS2208
Manufacturer Zebra, USA
Reading Technology BI-directional
Bar Codes UPC/EAN, UPC/EAN with Supplementals, UPC/ EAN 128, Code 39,
Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII,
Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11,
IATA, GS1 DataBar (formerly RSS) variants, Chinese 2 of 5
Interfaces USB, RS232, Keyboard Wedge, IBM 46XX RS485
Dimensions (WxDxH) 63 x 152 x 84 mm
Weight 150 g
Security IP30
Options Stand
Scan Rate 100 scans per second
